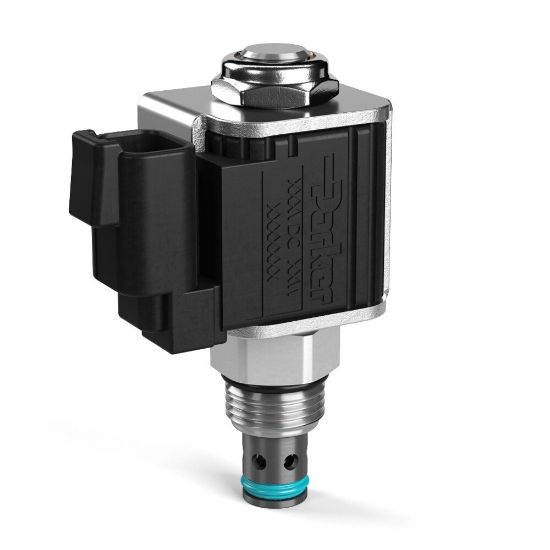

2 Way Poppet Type Solenoid Valve - DSL081C

Parker's 2-way poppet solenoid valves check flow in one direction with very low leakage and free flow opposite; normally-open or normally-closed configurations available. Capable of pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm).

Availability:	Backordered
Partner Available:	20 in stock

SKU: DSL081C

$49.25

Products specifications

Attribute name	Attribute value
Function	2-way	Body Material	n/a
Minimum Operating Temperature	-35 °F	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Flow Direction	Side to Nose (2-1)
Maximum Operating Pressure	3600 psi	Override Functionality	n/a
Flow Rate	30 L/min	Maximum Flow Rate	8 Gal/min
Cavity Size	C08-2	Seal Material	D-Ring (Standard)
Actuation Type	Electrical	Operation Type	Solenoid Operated
Weight	0.25 lb	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Configuration	Normally Closed	Valve Material	All parts steel. All operating parts hardened steel
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Wire Mesh Screen Included	No
Mounting Type	Screw in cartridge valve	Operating Temperature	-35 to +200 °F
Maximum Operating Temperature	+93 °C	Coil Type	1/2" Super Coil
Leak Rate	5 drops/min	Input Voltage	85% of rated voltage at 72°F (20°C) min
Response Time	50 ms	Coil Nut Tightening Torque	5-7 lb-ft
Adjustment Mechanism	N/A	Free Reverse Flow	No
Installation Torque	31-37 Nm	Maximum Inlet Pressure Rating	250 bar
Configuration	Normally Closed	Flow Rate	8 GAL/MIN, 30 L/MIN
Seal Material	D-Ring (Standard)	Actuation Type	Electrical
Wire Mesh Screen Included	No	Maximum Inlet Pressure Rating	3600 PSI, 250 BAR

Customers who bought this item also bought

4 Way 3 Position Spool Type Solenoid Valve - DSL105C4M

Parker has a large selection of direct acting 4-way, 3-position spool-type solenoid valves to cover a wide range of flow requirements up to 57 lpm (15 gpm) and pressures as high as 350 bar (5000 psi); closed, open, float, and tandem centers available.

$238.00

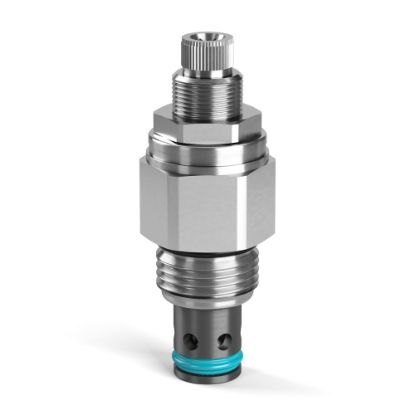

Pilot Operated Relief Valves - RAH081S50
