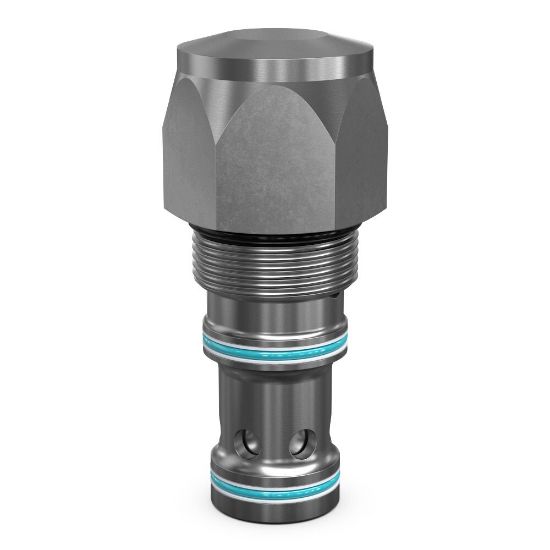

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Poppet Type Logic Element - 20SLC1-A-75V

Name: Poppet Type Logic Element - 20SLC1-A-75V
SKU: 20SLC1-A-75V
Availability: OutOfStock

Parker logic elements are screw-in type cartridge valves that can be used to control flow, pressure, or direction up to 303 lpm and 240 bar, and when applied in the proper arrangements, can perform multi-task control functions.

Availability:

Backordered

SKU: 20SLC1-A-75V

Qty:

Products specifications

Attribute name	Attribute value
Operation Type	Pilot Operated	Maximum Operating Temperature	204 °C
Seal Material	Fluorocarbon	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Configuration	Normally Closed (NC)
Actuation Type	Pilot to Close	Maximum Operating Pressure	3500 psi
Minimum Operating Temperature	-26 °C	Operating Temperature	-15 to 400 °F
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
Vented	n/a	Function	Logic Valve
Leak Rate	5	For Fluid Type	Synthetic Hydraulic Fluids
Pilot Location	External	Valve Material	Hardened Steel
Switching Pressure	5.2 bar	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Inlet Pressure Rating	240 bar	Flow Direction	Side to Nose (2-1)
Weight	1.78 lb	Flow Rate	303 L/min
Cavity Size	C20-3S	Maximum Flow Rate	303 L/min
Installation Torque	83 lb-ft
Seal Material	Fluorocarbon	Configuration	Pilot to Close
Switching Pressure	75 PSI, 5.2 BAR	Flow Rate	80 GAL/MIN, 303 L/MIN
