Colorflow Check Valve – C Series - C800B

Parkers Colorflow C series hydraulic check valves offer superior construction and versatility with a variety of materials, sizes and ports. These one-way check valves are used in hydraulic and pneumatic applications in the mobile & industrial markets.

Availability:	20 in stock
Partner Available:	367 in stock

SKU: C800B

$80.48

Products specifications

Attribute name	Attribute value
Body Material	BRASS	Minimum Operating Temperature	-40 °C
Actuation Type	Mechanical	Mounting Type	Inline
Seal Material	Nitrile	Connection Type	NPT
Maximum Operating Temperature	250 °F	Division	Hydraulic Valve Systems Division
Maximum Flow Rate	57 L/min	Connection Size	1/2 inch
Maximum Operating Pressure	2000 psi	Media	Hydraulic Fluids
Brand	Colorflow	Function	Mechanical
Flow Rate	15 g/min	Configuration	Inline
Flow Direction	Free Flow in one direction shut-off in reverse	Cracking Pressure	5 psi
Body Material	BRASS	Seal Material	Nitrile
Connection Type	NPT	Connection Size	1/2"
Cracking Pressure (psi)	5	Media	Hydraulic Oil
Function	Check	Configuration	In-line
Mounting Type	In-line	Actuation Type	Mechnical
Flow Direction	Free Flow in one Direction	Maximum Flow Rate (gpm)	15
Maximum Operating Temperature	250	Minimum Operating Temperature	-40
Maximum Operating Pressure	2000

Customers who bought this item also bought

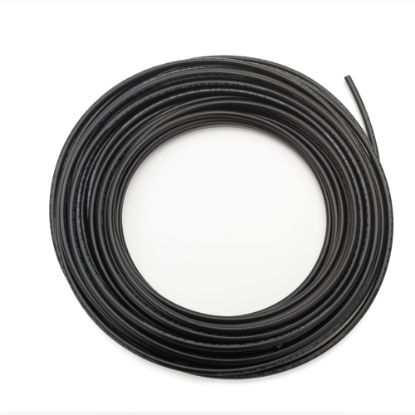

PE Tubing - EB-86-0500
