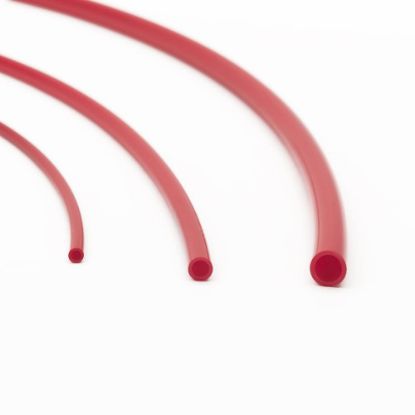

Nylon Tubing - NB-2.5-025

Nylon plastic tubing tubing is formulated from abrasion-resistant, heat and light-stabilized nylon that is capable of operating at 200°F. It exhibits low-level water absorption and is chemically resistant. (Series N/NB)

Availability:	134 in stock
Partner Available:	3166 in stock

SKU: NB-2.5-025

$0.46

Products specifications

Attribute name	Attribute value
Length per Package	250 ft	Media	Lubricants
Tube Outside Diameter	4 mm	Maximum Operating Temperature	200 °F
Minimum Operating Temperature	-54 °C	Tube Inside Diameter	2.7 mm
Tube Material	Polyamide (PA)	Division	Parflex Division
Compatible Fitting	Compress-Align®	Cover Material	n/a
Application	Robotics	Minimum Burst Pressure	1200 psi
Minimum Bend Radius	12.7 mm	Specifications Met	N/A
Maximum Operating Pressure	300 psi	Size	-2.5
Weight	0.007 kg/m	Color	Black
Standard Pack Qty (ft)	250	Order Size	5/32
Color	BLACK
