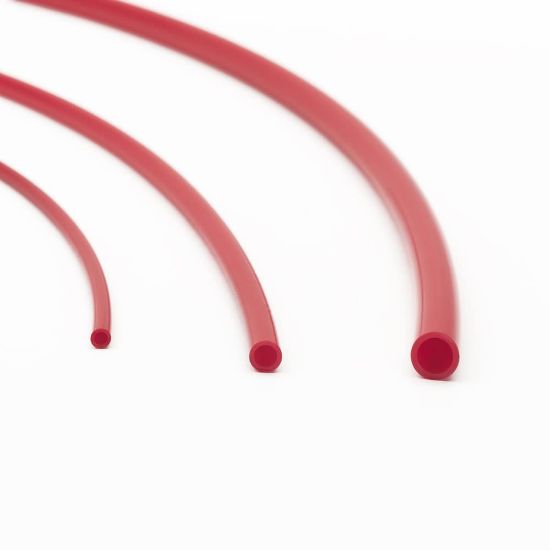

Nylon Tubing - N-2.5-025-RED

Nylon plastic tubing tubing is formulated from abrasion-resistant, heat and light-stabilized nylon that is capable of operating at 200°F. It exhibits low-level water absorption and is chemically resistant. (Series N/NB)

Availability:	Backordered
Partner Available:	Backordered

SKU: N-2.5-025-RED

$0.46

Products specifications

Attribute name	Attribute value
Minimum Burst Pressure	1200 psi	Minimum Bend Radius	12.7 mm
Specifications Met	N/A	Size	-2.5
Length per Package	76.2 m	Color	Red
Weight	0.005 lb/ft	Media	Air
Application	Machine Tools	Division	Parflex Division
Tube Inside Diameter	2.7 mm	Tube Material	Polyamide (PA)
Tube Outside Diameter	5/32 inch	Minimum Operating Temperature	-54 °C
Maximum Operating Temperature	200 °F	Maximum Operating Pressure	20.7 bar
Compatible Fitting	Hi-Duty	Cover Material	n/a
Color	RED	Standard Pack Qty (ft)	250
Order Size	5/32
