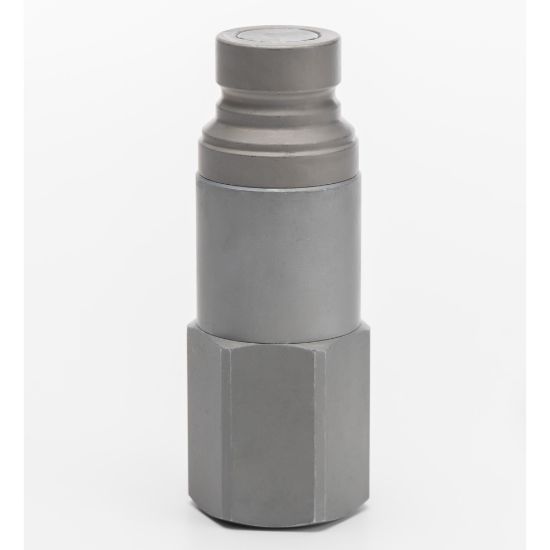

Non-Spill, Flat Face, ISO 16028, HTMA, Hydraulic Quick Couplings - FEM and FEC Series - FEC-502-12FO

Parker's non-spill, flat face hydraulic couplers are ideal for use across a variety of applications where fluid lines require fast & easy connection and disconnection. These quick connect fittings are designed to minimize spillage and limit air inclusion

Availability:	3 in stock
Partner Available:	32 in stock

SKU: FEC-502-12FO

$172.14

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	250 °F	Dimensional Weight	0.15995203836930455 lb
Application	Non-Spill	Minimum Operating Temperature	-40 °F
Flow Rate	12 Gal/min	Body Material	Steel
Product Type	Push to Connect	Hex Size	1.50 inch
Plating Type	Zinc with clear trivalent chromate	Specifications Met	ISO 16028
Seal Material	Polyurethane/Nitrile	Division	Quick Coupling Division
Valve Type	Non-Spill, Connect under pressure	Connection Thread Size (inch)	1 1/16 - 12
Body Size (inch)	1/2	Coupling Half	Male Nipple
Maximum Operating Pressure	3625	Connection Type	Female UNF

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
