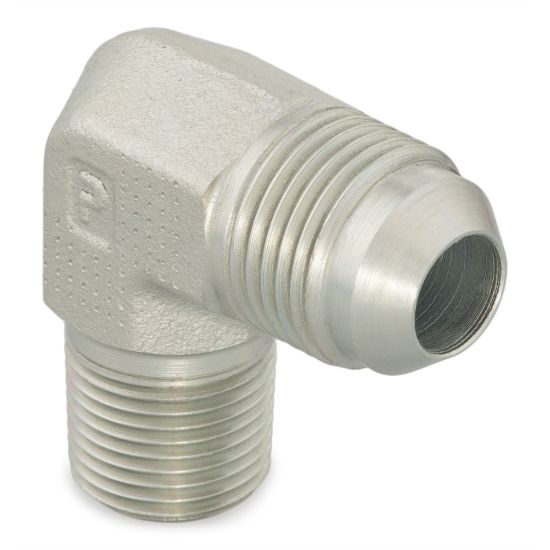

Triple-Lok® 37° Flare JIC Tube Fittings and Adapters - 10 CTX-B

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Availability:	82 in stock
Partner Available:	39 in stock

SKU: 10 CTX-B

$19.88

Products specifications

Attribute name	Attribute value
Body Material	BRASS	Division	Tube Fittings Division
Connection 4 Size	na	Connection Type	37° Flare
O-Ring Material	na	Maximum Dynamic Pressure	3300 psi
Specifications Met	SAE J514	Dimensional Weight	0.05618255395683453 lb
Shape	90° Elbow	Connection 2 Thread Size	1/2-14 inch
Connection 3 Thread Size	na	Connection 1 Tube Outside Diameter	14, 15, 16 mm
Connection 2 Tube Outside Diameter	na	Connection 3 Tube Outside Diameter	na
Connection 4 Tube Outside Diameter	na	Connection 1 Size	Male 37° Flare
Connection 2 Size	Male NPT/NPTF	Connection 3 Size	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok
