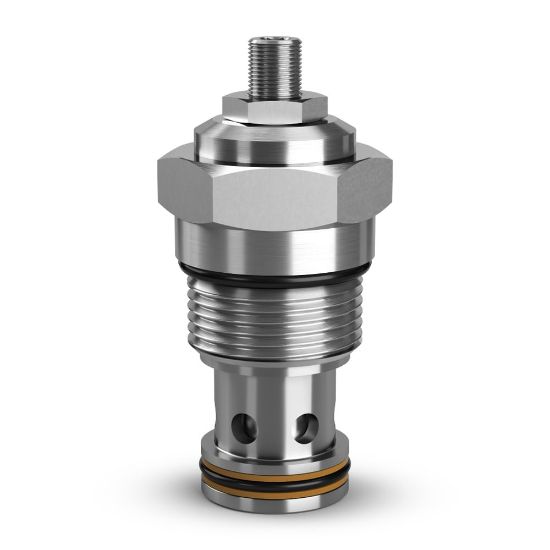

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Needle Flow Control Valves - J06A2TN

Name: Needle Flow Control Valves - J06A2TN
SKU: J06A2TN
Availability: OutOfStock

Parker offers standard needle valves and needle valves with a reverse free-flow check. Parker’s needle valves are non-compensated adjustable orifices capable of flows up to 225 lpm (60 gpm) and pressures as high as 420 bar (6000 psi).

Availability:

Backordered

SKU: J06A2TN

Qty:

Products specifications

Attribute name	Attribute value
Actuation Type	Manual	Connection Size	n/a
Function	2-way	Maximum Operating Pressure	420 bar
Connection Type	n/a	Seal Material	Nitrile
Body Material	n/a	Division	Hydraulic Cartridge Systems Division
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Minimum Operating Temperature	-34 °C
Maximum Flow Rate	225 L/min	Needle Type	Fine
Division	Mobile Hydraulic Systems Division Europe	Cavity Size	C16-2
Installation Torque	100 Nm	Adjustment Mechanism	Tamper Resistant
Maximum Inlet Pressure Rating	6000 psi	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+250 °F	Flow Rate	60 Gal/min
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-30 to +250 °F
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Operation Type	Manually operated
Configuration	Needle	Weight	0.38 kg
Leak Rate	5 @ 1450 PSI (100 BAR) drops/min
Seal Material	Nitrile	Needle Type	Fine
Adjustment Mechanism	Tamper Resistant	Maximum Inlet Pressure Rating	6000 PSI, 420 BAR
Flow Rate	60 GAL/MIN, 225 L/MIN
