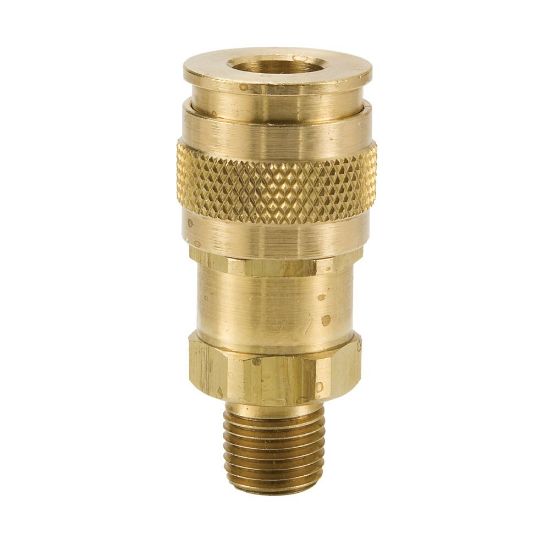

Push to Connect, Universal Interchange, Quick Connect Air Couplers - UC Series - UC-251-6MP

Parker's general purpose pneumatic, air quick couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	4 in stock
Partner Available:	20 in stock

SKU: UC-251-6MP

$34.39

Products specifications

Attribute name	Attribute value
Body Size	1/4 inch	Maximum Operating Temperature	250 °F
Application	Air	Media	Low pressure fluids and compressed air
Minimum Operating Temperature	-40 °F	Lock Type	Locking balls
Maximum Operating Pressure	150 psi	Dimensional Weight	0.06291129496402877 lb
Valve Type	Tubular	Coupling Half	Coupler
Division	Quick Coupling Division	Sleeve Type	Push to Connect
Specifications Met	Connects with Industrial Interchange, 10 series (Tru-Flate), and 50 series (ARO 210) style nipples	Body Material	BRASS
Seal Material	Nitrile
Connection Type	NPTF	Thread Style	Male
Connection Thread Size (inch)	3/8 - 18

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
