*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

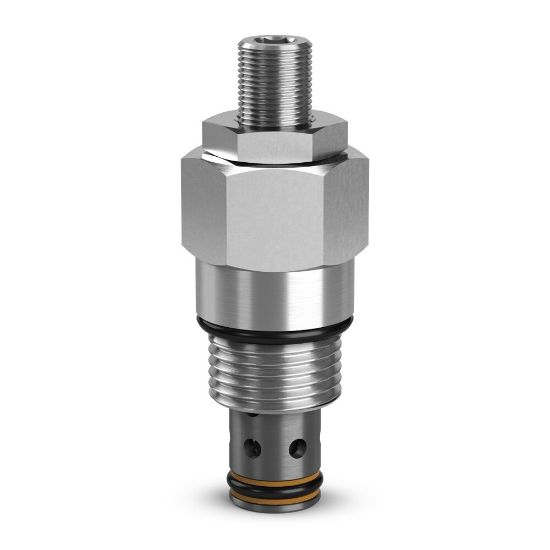

Needle Flow Control Valves - J02A2TN

Name: Needle Flow Control Valves - J02A2TN
SKU: J02A2TN
Availability: OutOfStock

Parker offers standard needle valves and needle valves with a reverse free-flow check. Parker’s needle valves are non-compensated adjustable orifices capable of flows up to 225 lpm (60 gpm) and pressures as high as 420 bar (6000 psi).

Availability:

Backordered

SKU: J02A2TN

Qty:

Products specifications

Attribute name	Attribute value
Actuation Type	Manual	Connection Size	n/a
Function	2-way	Connection Type	n/a
Seal Material	Nitrile	Weight	0.24 lb
Maximum Operating Pressure	6000 psi	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-30 °F	Needle Type	Fine
Division	Mobile Hydraulic Systems Division Europe	Cavity Size	C08-2
Installation Torque	30 lb-ft	Adjustment Mechanism	Tamper Resistant
Maximum Inlet Pressure Rating	420 bar	Flow Rate	45 L/min
Maximum Flow Rate	45 L/min	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+121 °C	Valve Material	All parts steel. All operating parts hardened steel
Operating Temperature	-30 to +250 °F	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Operation Type	Manually operated	Configuration	Needle
Leak Rate	5 @ 1450 PSI (100 BAR) drops/min
Seal Material	Nitrile	Needle Type	Fine
Adjustment Mechanism	Tamper Resistant	Maximum Inlet Pressure Rating	6000 PSI, 420 BAR
Flow Rate	12 GAL/MIN, 45 L/MIN
