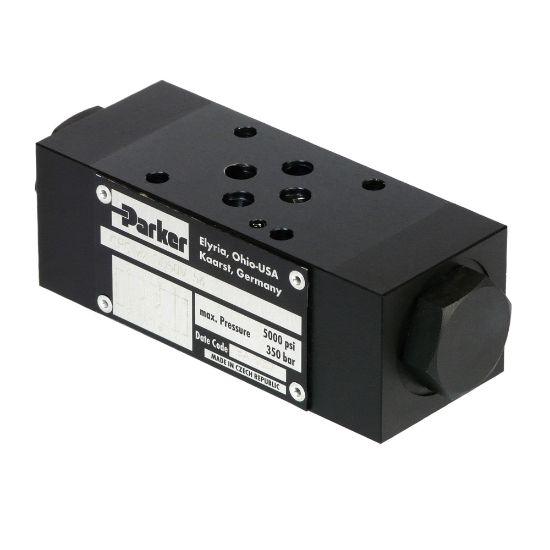

Pilot Operated Check Sandwich Valve – CPOM Series(AP) - SCPOM3AAV

Name: Pilot Operated Check Sandwich Valve – CPOM Series(AP) - SCPOM3AAV
SKU: SCPOM3AAV
Availability: OutOfStock

Parker's pilot operated check valves series CPOM in sandwich design ensure an easy configuration of stack systems and provide a very good price-performance ratio.

Availability:

Backordered

SKU: SCPOM3AAV

Qty:

Products specifications

Attribute name	Attribute value
Weight	4 kg	Product Series	Check Valve
Division	Control Division China	Seal Material	FPM
Actuation Type	Hydraulically	Maximum Flow Rate	100 L/min
Operation Type	Pilot	Minimum Operating Temperature	-20 °C
Pilot Pressure Ratio	3:01	Maximum Operating Pressure	350 bar
Maximum Operating Temperature	60 °C	Body Material	Nodular cast iron
Mounting Type	Sandwich Plate
Seal Material	V - FPM	Minimum Opening Pressure (bar)	Omit - 1.0 bar
Nominal Size	3 - NG10	Poppet Style	AA - A Port Only
