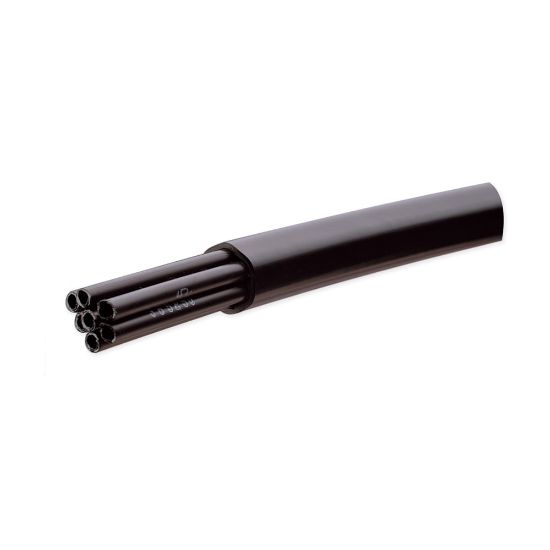

Multitube® Plastic Tubing Bundles - 5PJ-E0662

Name: Multitube® Plastic Tubing Bundles - 5PJ-E0662
SKU: 5PJ-E0662
Availability: OutOfStock

Multitube® Plastic Tubing Bundles save space, reduce installation costs and offer protection in various industrial plant, robotics and laboratory applications.

Availability:

Backordered

SKU: 5PJ-E0662

Qty:

Products specifications

Attribute name	Attribute value
Number of Tubes	5	Tube Outside Diameter	3/8 inch
Cover Color	Black	Division	Parflex Division
Cover Material	FR-PVC	Minimum Bend Radius	3 inch
Tube Material	Polyethylene (PE)	Nominal Outside Diameter	1.16 inch
Maximum Operating Temperature	66 °C	Minimum Operating Temperature	-62 °C
Tube O.D. (inch)	3/8	Tubing Material	Polyethylene
Number of Tubes	5	Tube Wall Thickness (inch)	0.062
Tube Type	Jacketed Tubing

California Residents: Prop-65 Warning

Product resources

Literature and Reference Materials

Catalog 4660 Parflex Thermoplastic & Fluoropolymer Hose and Tubing--CAT-4660
