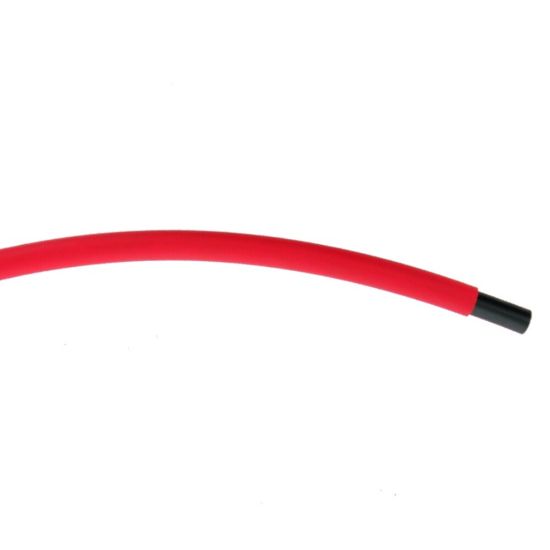

PU Tubing - Flame Resistant - 95FR-4-RED-0500

Name: PU Tubing - Flame Resistant - 95FR-4-RED-0500
SKU: 95FR-4-RED-0500
Availability: OutOfStock

MicroWeld™ PolyurethaneTubing - 95FR is ideal for low to medium pressure air and water supply lines where weld spatter protection is required.

Availability:

Backordered

SKU: 95FR-4-RED-0500

Qty:

Products specifications

Attribute name	Attribute value
Length per Package	500 ft	Weight	0.042 lb/ft
Cover Material	Proprietary Material	Compatible Fitting	68PLM
Maximum Operating Pressure	240 psi	Minimum Operating Temperature	-40 °F
Application	Pneumatic Systems	Division	Parflex Division
Diameter	8.6 mm	Tube Outside Diameter	1/4 inch
Maximum Operating Temperature	165 °F	Tube Inside Diameter	0.160 inch
Product Type	Fractional	Cover Thickness	0.045 inch
Tube Material	Polyurethane	Cover Color	Red
Minimum Bend Radius	19 mm	Minimum Burst Pressure	5.0 MPa
Product Type	Inch	Order Size	-4
Color	RED	Standard Pack Qty (ft)	500.0
