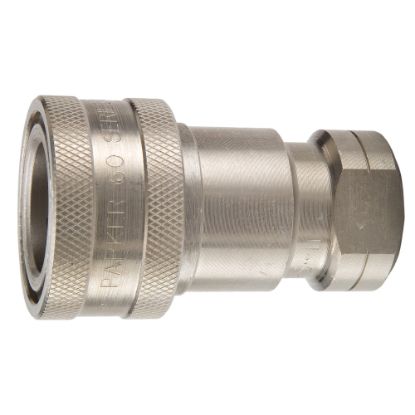

Multi-Purpose, ISO 7241 series B Interchange, Hydraulic Quick Couplings - 60 Series - SH3-63

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	127 in stock
Partner Available:	459 in stock

SKU: SH3-63

$45.73

Products specifications

Attribute name	Attribute value
Hex Size	0.88 inch	Product Type	Manual Connect
Vacuum Pressure Rating	27.4 Inch-Hg	Valve Type	Poppet
Maximum Operating Temperature	250 °F	Plating Type	n/a
Minimum Operating Temperature	-40 °F	Dimensional Weight	0.01999400479616307 lb
Valve Material	Stainless Steel 303	Specifications Met	ISO 7241-1 Series B
Division	Quick Coupling Division	Flow Rate	23 L/min
Seal Material	Nitrile	Coupling Half	Male Nipple
Application	General Purpose	Body Size (inch)	3/8
Body Material	303 Stainless Steel	Connection Thread Size (inch)	3/8 - 18
Maximum Operating Pressure	5000	Connection Type	Female NPTF
