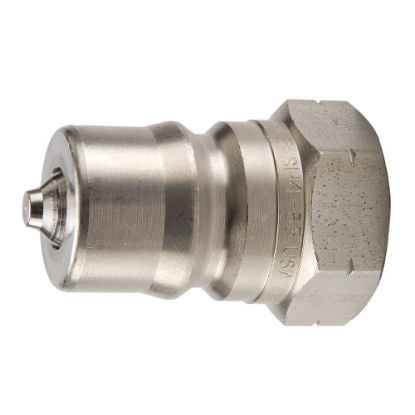

Multi-Purpose, ISO 7241 series B Interchange, Hydraulic Quick Couplings - 60 Series - SH3-62

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	41 in stock
Partner Available:	386 in stock

SKU: SH3-62

$102.40

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	121 °C	Hex Size	0.88 inch
Product Type	Manual Connect	Minimum Operating Temperature	-40 °F
Valve Type	Poppet	Plating Type	n/a
Division	Quick Coupling Division	Specifications Met	ISO 7241-1 Series B
Flow Rate	6 Gal/min	Valve Material	Stainless Steel 303
Vacuum Pressure Rating	-0.9 bar	Dimensional Weight	0.07997601918465227 lb
Ball Material	Stainless Steel
Connection Thread Size (inch)	3/18 - 18	Application	General Purpose
Seal Material	Nitrile	Body Size (inch)	3/8
Body Material	303 Stainless Steel	Coupling Half	Female Coupler
Maximum Operating Pressure	5000	Connection Type	Female NPTF
