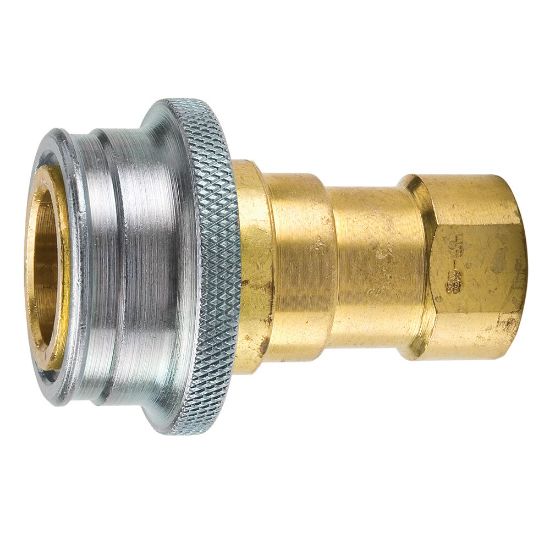

Multi-Purpose, ISO 7241 series B Interchange, Hydraulic Quick Couplings - 60 Series - H3-68

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	Backordered
Partner Available:	Backordered

SKU: H3-68

$75.22

Products specifications

Attribute name	Attribute value
Ball Material	Stainless Steel	Product Type	Manual Connect
Hex Size	0.88 inch	Valve Material	Brass
Valve Type	Poppet	Vacuum Pressure Rating	27.4 Inch-Hg
Maximum Operating Temperature	400 °F	Minimum Operating Temperature	-54 °C
Plating Type	n/a	Division	Quick Coupling Division
Specifications Met	ISO 7241-1 Series B	Dimensional Weight	0.12464028776978417 lb
Flow Rate	6 Gal/min
Connection Type	Female NPTF	Body Size (inch)	3/8
Body Material	BRASS	Maximum Operating Pressure	4000
Connection Thread Size (inch)	3/8 - 18	Application	Steam
Coupling Half	Female Coupler	Seal Material	Ethylene Propylene

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
