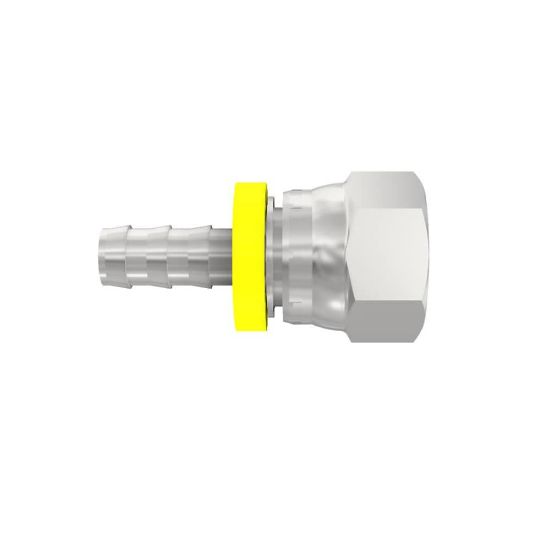

Push On Field Attachable Hydraulic Hose Fitting - 82 Series - Europe - 36882-8-6-SM

Name: Push On Field Attachable Hydraulic Hose Fitting - 82 Series - Europe - 36882-8-6-SM
SKU: 36882-8-6-SM
Availability: OutOfStock

Configure hose assemblies quickly and easily in the field without special tools with Parker’s 82 series one-piece, push-on field-attachable hydraulic fittings.

Availability:

Backordered

SKU: 36882-8-6-SM

Qty:

Products specifications

Attribute name	Attribute value
Product Type	Barbed Fittings\|Push-Lok Hose Fittings	Port Type	DKJ
Division	Polymer Hose Division Europe	Industry	Industrial Manufacturing Equipment
Brand	Parker	Connection 2 Type	Dual Flare Swivel
Maximum Operating Pressure	35.0 MPa	Connection 1 Type	Hose
Application	Machine Tools	Division	Polymer Hose Division Europe
Body Material	Steel	Technology	Fluid & Gas Handling
Connection Length	25 mm (see drawing legend B)	Connection 1 Size	-6 (Size)
Specifications Met	ISO 12151-5-SWS	For Fluid Type	Fuels - Check fuel type with our catalogue chart.
Connection 2 Size	3/4"-16 inch Thread	Shape	Straight
Hex Type	Metric	Shape	Straight
Body Material	Steel	Port Connection	3/4"
Connection 2 Type	Female JIC 37°/SAE 45° Dual Flare - Swivel	Hose I.D. (size)	-6

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Parker Hydraulic Hoses, Fittings and Equipment Catalogue CAT_4400_UK--(English)
