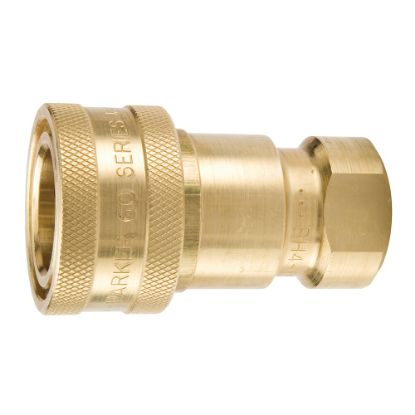

Multi-Purpose, ISO 7241 series B Interchange, Hydraulic Quick Couplings - 60 Series - BH3-61

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	88 in stock
Partner Available:	651 in stock

SKU: BH3-61

$20.15

Products specifications

Attribute name	Attribute value
Plating Type	n/a	Dimensional Weight	0.01999400479616307 lb
Division	Quick Coupling Division	Specifications Met	ISO 7241-1 Series B
Flow Rate	23 L/min	Hex Size	0.88 inch
Maximum Operating Temperature	250 °F	Vacuum Pressure Rating	27.4 Inch-Hg
Product Type	Manual Connect	Valve Type	Poppet
Minimum Operating Temperature	-40 °F	Valve Material	Brass
Connection Thread Size (inch)	3/8 - 18	Body Material	BRASS
Maximum Operating Pressure	2700	Connection Type	Female NPTF
Seal Material	Nitrile	Coupling Half	Male Nipple
Application	General Purpose	Body Size (inch)	3/8
