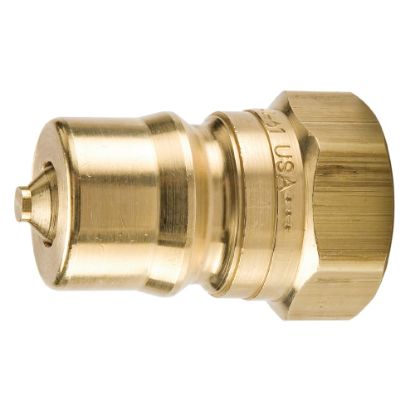

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Multi-Purpose, ISO 7241 series B Interchange, Hydraulic Quick Couplings - 60 Series - BH3-60

Parker's general purpose quick couplers and nipples are versatile for use across a spectrum of applications where fluid, gas or steam lines require fast and easy connection and disconnection.

Availability:	55 in stock
Partner Available:	378 in stock

SKU: BH3-60

$45.56

Products specifications

Attribute name	Attribute value
Ball Material	Stainless Steel	Flow Rate	23 L/min
Dimensional Weight	0.07997601918465227 lb	Hex Size	0.88 inch
Maximum Operating Temperature	250 °F	Valve Material	Brass
Product Type	Manual Connect	Vacuum Pressure Rating	27.4 Inch-Hg
Valve Type	Poppet	Minimum Operating Temperature	-40 °C
Plating Type	n/a	Specifications Met	ISO 7241-1 Series B
Division	Quick Coupling Division
Maximum Operating Pressure	2700	Connection Type	Female NPTF
Connection Thread Size (inch)	3/8 - 16	Body Size (inch)	3/8
Seal Material	Nitrile	Application	General Purpose
Body Material	BRASS	Coupling Half	Female Coupler
