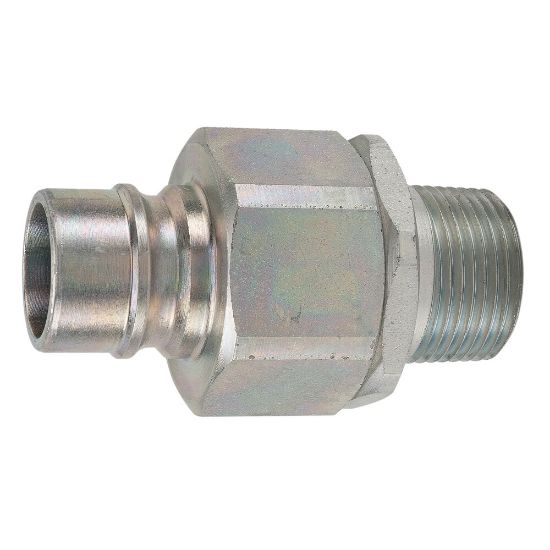

Multi-Purpose Hydraulic Quick Couplings - H Series - VHN4-4M

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Availability:	2 in stock
Partner Available:	275 in stock

SKU: VHN4-4M

$18.81

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Application	General Purpose
Hex Size	0.88 inch	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-40 °F	Product Type	Manual Connect
Valve Type	Poppet	Plating Type	Zinc with clear trivalent chromate
Division	Quick Coupling Division	Dimensional Weight	0.026658673061550762 lb
Body Size (inch)	1/4	Connection Type	Male NPT
Connection Thread Size (inch)	1/4 - 18	Coupling Half	Male Nipple
Body Material	Steel	Maximum Operating Pressure	6500
Valve Type	Poppet

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
