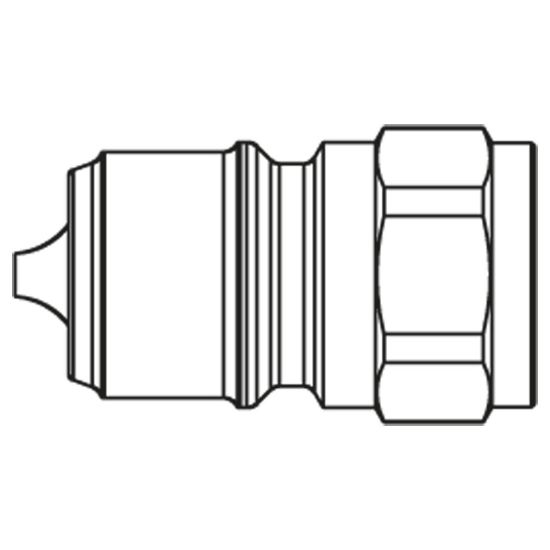

Hydraulic quick coupling - Parker Profile - T series - 7521-QC

Name: Hydraulic quick coupling - Parker Profile - T series - 7521-QC
SKU: 7521-QC
Availability: OutOfStock

Parker Hydraulics quick coupling system with Parker Tema Profile and body size 1/8" up to 2" for applications up to 450 bar.

Availability:

Backordered

SKU: 7521-QC

Qty:

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-30 °C	Connection Thread Size	3/4 inch
Connection Type	Female Thread	Division	High Pressure Connectors Europe Division
Maximum Operating Temperature	100 °C
Working Pressure Connected (bar)	300	External Hex (mm)	36
Material	Brass / Steel	Type	Plug
Length (mm)	53	Version	Pressure Eliminator
Valving	with	Outside Diameter (mm)	39
Seal Material	NBR	Body Size (inch)	3/4

Product resources

Compliance, Certifications & Safety

Safety instructions Quick Couplings

Literature and Reference Materials

Hydraulic Quick Couplings Catalogue--CAT/3800-HYD/UK
Catalog 3800 Quick Coupling Products
