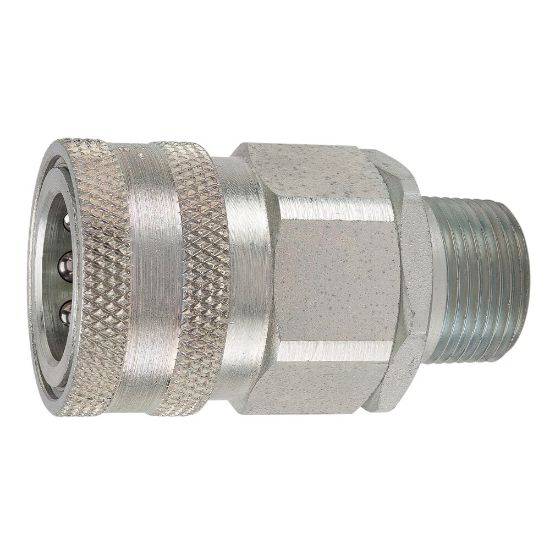

Multi-Purpose Hydraulic Quick Couplings - H Series - VHC6-6M

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Availability:	Backordered
Partner Available:	Backordered

SKU: VHC6-6M

$37.84

Products specifications

Attribute name	Attribute value
Division	Quick Coupling Division	Hex Size	1 inch
Seal Material	Nitrile	Maximum Operating Temperature	250 °F
Valve Type	Poppet	Product Type	Manual Connect
Minimum Operating Temperature	-40 °F	Application	Hydraulics
Dimensional Weight	0.05341726618705036 lb	Plating Type	Zinc with clear trivalent chromate
Coupling Half	Female Coupler	Valve Type	Poppet
Connection Type	Male NPT	Body Size (inch)	3/8
Maximum Operating Pressure	4500	Connection Thread Size (inch)	3/8 - 18
Body Material	Steel

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
