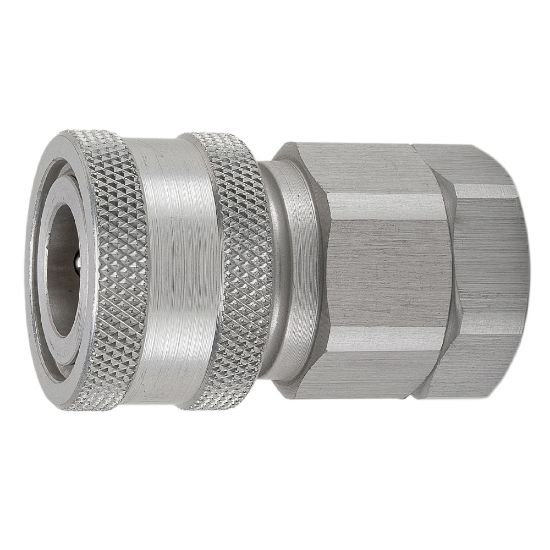

Multi-Purpose Hydraulic Quick Couplings - H Series - APHC4-4F

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Availability:	Backordered
Partner Available:	Backordered

SKU: APHC4-4F

$29.00

Products specifications

Attribute name	Attribute value
Hex Size	0.88 inch	Application	Hydraulic, General Purpose
Maximum Operating Temperature	250 °F	Valve Type	Unvalved
Minimum Operating Temperature	-40 °F	Product Type	Manual Connect
Plating Type	na	Division	Quick Coupling Division
Seal Material	Nitrile
Connection Thread Size (inch)	1/4 - 18	Body Material	Aluminum
Coupling Half	Female Coupler	Valve Type	Unvalved
Maximum Operating Pressure	2250	Connection Type	Female NPTF
Body Size (inch)	1/4

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
