In-Line Diagnostic Fittings and Adapters - VKA3/10LNBR71

Name: In-Line Diagnostic Fittings and Adapters - VKA3/10LNBR71
SKU: VKA3/10LNBR71
Availability: OutOfStock

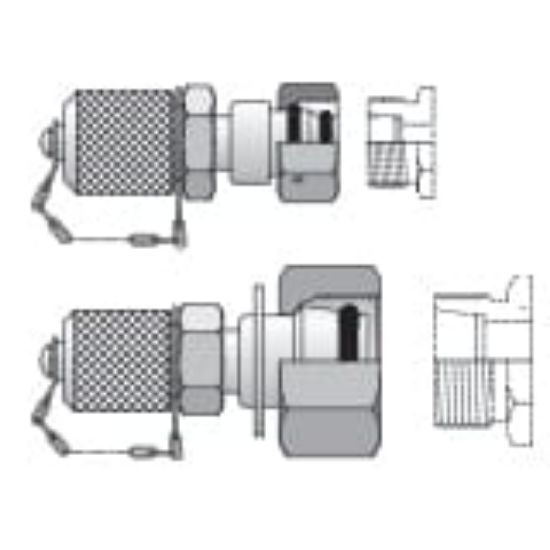

Parker's Diagnostic products are designed to be installed to a hose assembly or tube line without the need to displace the port adapter, working in conjunction with electronic diagnostic products and mechanical pressure and temperature sensing equipment.

Availability:

Backordered

SKU: VKA3/10LNBR71

Qty:

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division
Connection 3 Thread Size (inch)	na	O-Ring Material	NBR
Connection 1 Style	Male 24° Metric Flareless Swivel	Connection 1 Tube O.D. (mm)	10L
Connection 2 Style	M16 Test Point Connector	Connection 2 Tube O.D. (mm)	na
Connection 3 Thread Size (mm)	na	Connection 3 Style	na
Body Material	Stainless Steel	Connection 2 Thread Size (mm)	M16X2
Connection 2 Tube O.D. (inch)	na	Connection 1 Tube O.D. (inch)	na
Connection 2 Thread Size (inch)	na

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok
