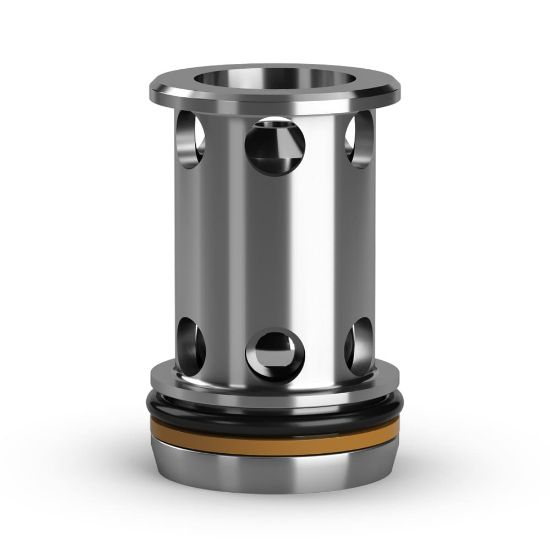

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Insert Check Valves - D1A060-2.0V

Name: Insert Check Valves - D1A060-2.0V
SKU: D1A060-2.0V
Availability: OutOfStock

Parker’s ball and poppet style check valves are cartridges designed to be inserted inside manifolds and can handle flow up to 500 lpm (132 gpm) and pressures at 420 bar (6,000 psi) for circuit optimization and space savings.

Availability:

Backordered

SKU: D1A060-2.0V

Qty:

Products specifications

Attribute name	Attribute value
Connection Size	n/a	Connection Type	n/a
Maximum Operating Temperature	204 °C	Seal Material	Fluorocarbon
Maximum Operating Pressure	6000 psi	Body Material	n/a
Division	Hydraulic Cartridge Systems Division	Minimum Operating Temperature	-26 °C
Operating Temperature	-26 to 204 °C	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
For Fluid Type	Synthetic Hydraulic Fluids	Filter Efficiency Rating	ISO 4406 18/16/13
Cracking Pressure	2 bar	Weight	0.19 lb
Actuation Type	Pressure Sensing	Division	Mobile Hydraulic Systems Division Europe
Operation Type	Automatic	Valve Material	Steel (all parts)
Maximum Inlet Pressure Rating	6000 psi	Configuration	Insert
Mounting Type	Inside Manifolds	Flow Direction	2-1 Checked
Flow Rate	38 Gal/min	Maximum Flow Rate	38 Gal/min
Function	Check	Leak Rate	3 drops/min
Cavity Size	2U
Seal Material	Fluorocarbon	Maximum Inlet Pressure Rating	6000 PSI, 420 BAR
Flow Rate	38 GAL/MIN, 145 L/MIN	Cracking Pressure	30 PSI, 2 BAR
