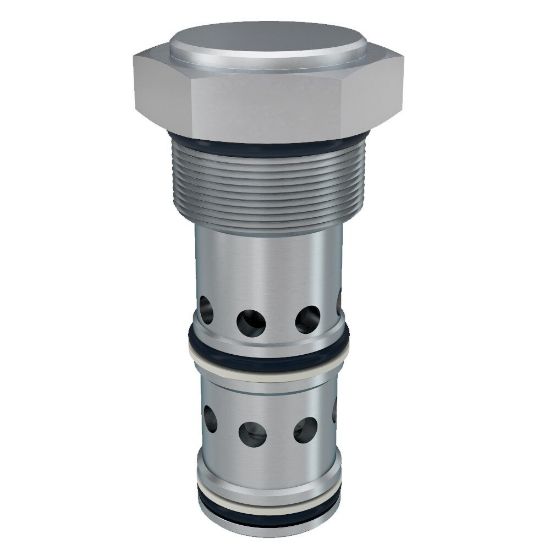

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Pressure Compensators/Control Elements - FCR161F04

Name: Pressure Compensators/Control Elements - FCR161F04
SKU: FCR161F04
Availability: OutOfStock

REGIONAL - Parker’s pressure compensator valves provide constant flow regardless of upstream or downstream pressure changes via a fixed or adjustable orifice. These valves can handle flows up to 150 lpm (40 gpm) and pressures up to 245 bar (3500 psi).

Availability:

Backordered

SKU: FCR161F04

Qty:

Products specifications

Attribute name	Attribute value
Flow Rate Accuracy	10%	Cavity Size	C16-3
Maximum Operating Temperature	245 bar	Maximum Operating Pressure	3500 psi
Operation Type	Pressure sensing	Division	Hydraulic Cartridge Systems Division
Maximum Flow Rate	40 Gal/min	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Configuration	Used with external orifice (fixed or variable)	Adjustment Mechanism	Fixed
Seal Material	Nitrile	Installation Torque	40 lb-ft
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Flow Rate	40 Gal/min
Operating Temperature	-34 to +121 °C	Connection Type	n/a
Connection Size	n/a	Division	Hydraulic Systems Division
Weight	0.75 lb	Function	Pressure Compensating Valve
Maximum Inlet Pressure Rating	3500 psi	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Body Material	n/a	Pressure Differential	2.8 bar
Valve Material	All parts steel. All operating parts hardened steel	Actuation Type	Restrictive type
Minimum Operating Temperature	+250 °F
Seal Material	Nitrile	Maximum Flow Rate	40 GAL/MIN, 150 L/MIN
Pressure Differential	40 PSI, 2.8 BAR
