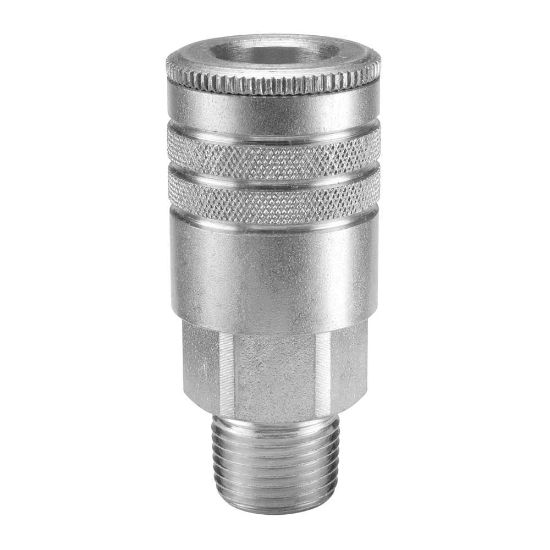

Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series - S22

Parker's general purpose, Industrial Interchange pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	6 in stock
Partner Available:	28 in stock

SKU: S22

$108.54

Qty:

Products specifications

Attribute name	Attribute value
Application	Air	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-40 °F	Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B
Lock Type	Locking balls	Media	Low pressure fluids and compressed air
Dimensional Weight	0.02670863309352518 lb	Valve Type	Tubular
Plating Type	na	Division	Quick Coupling Division
Coupling Half	Coupler	Sleeve Type	Manual
Seal Material	Nitrile	Maximum Operating Pressure	300 psi
Connection Thread Size (inch)	1/4 - 18	Connection Type	NPTF
Connection Hose I.D. (inch)	na	Thread Style	Male
Body Material	Stainless steel (303)	Body Size (inch)	1/4
