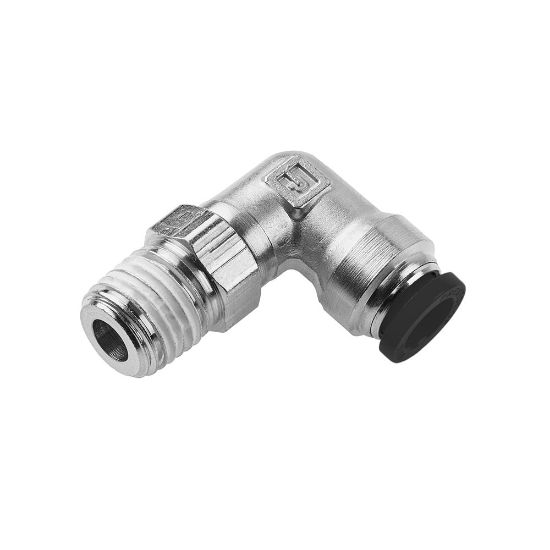

Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal - 169PLP-5/32-0

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

Availability:	Backordered
Partner Available:	676 in stock

SKU: 169PLP-5/32-0

$10.05

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Brand	Parker
Seal Material	Nitrile	Vacuum Pressure Rating	28 Inch-Hg
Industry	Industrial Manufacturing Equipment	For Fluid Type	Oil
Technology	Fluid & Gas Handling	Gripping Ring Material	STAINLESS STEEL
Body Material	Brass, Nickel-plated	Maximum Operating Pressure	300 psi
Application	Inert Gases	Specifications Met	UL 94 V-0
Maximum Operating Temperature	200 °F	Materials of Construction	PVDF (Button)
Division	Fluid System Connectors Division	Region of Origin	United States
Minimum Operating Temperature	-17.7 °C	Tube Material	Rigid Nylon
Dimensional Weight	0.2179 lb	Hex Size	3/8 inch
Connection 1 Type	Push-to-Connect	Connection 1 Size	5/32"
Configuration	Tube to Pipe	Connection 2 Type	Male NPTF
Connection 2 Size	10-32	Shape	Elbow 90° - Swivel
