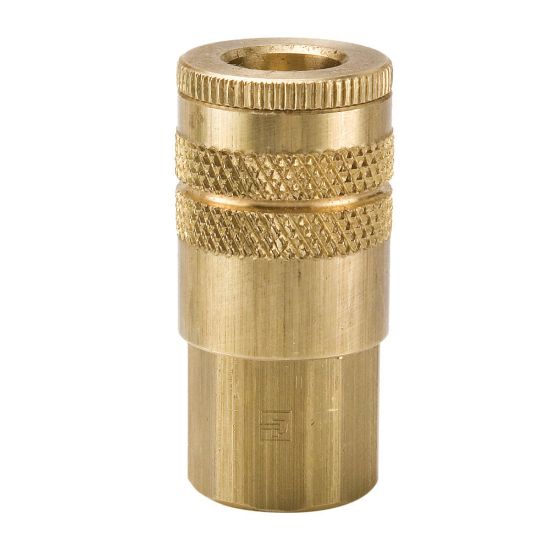

Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series - B23

Parker's general purpose, Industrial Interchange pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	425 in stock
Partner Available:	3357 in stock

SKU: B23

$16.73

Qty:

Products specifications

Attribute name	Attribute value
Application	Air	Media	Low pressure fluids and compressed air
Maximum Operating Temperature	250 °F	Minimum Operating Temperature	-40 °F
Lock Type	Locking balls	Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B
Valve Type	Tubular	Plating Type	na
Dimensional Weight	0.026658673061550762 lb	Division	Quick Coupling Division
Coupling Half	Coupler	Seal Material	Nitrile
Sleeve Type	Manual	Maximum Operating Pressure	300 psi
Connection Type	NPTF	Thread Style	Female
Connection Thread Size (inch)	1/4 - 18	Connection Hose I.D. (inch)	na
Body Material	BRASS	Body Size (inch)	1/4
