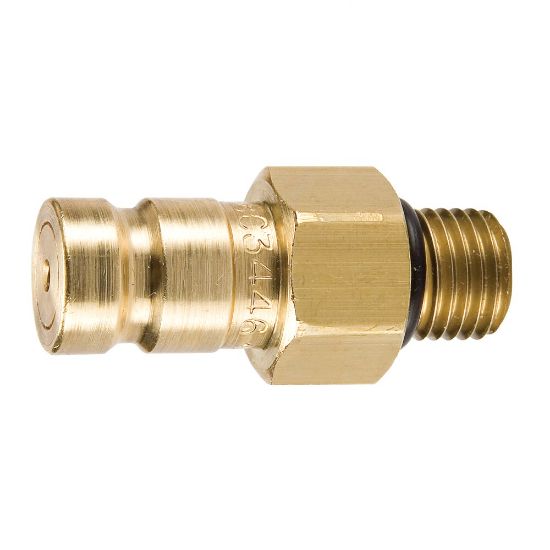

Diagnostic Fluid Sampling, Test Port Quick Couplings, Brass Test Point Connectors and Steel Couplers – PDFS / BPDFS - BPDFS341

Diagnostic fluid sampling test port quick couplings are designed to provide an easy access point for obtaining fluid samples.

Availability:	4 in stock
Partner Available:	20 in stock

SKU: BPDFS341

$25.94

Products specifications

Attribute name	Attribute value
Coupling Half	Nipple	Seal Material	Fluorocarbon
Application	Fluid System Diagnostics	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-40 °F	Body Size	1/8 inch
Division	Quick Coupling Division	Maximum Operating Pressure	500 psi
Body Material	BRASS
Coupling Half	Nipple	Thread Style	Male
Connection Thread Size (inch)	7/16 - 20 ORB
