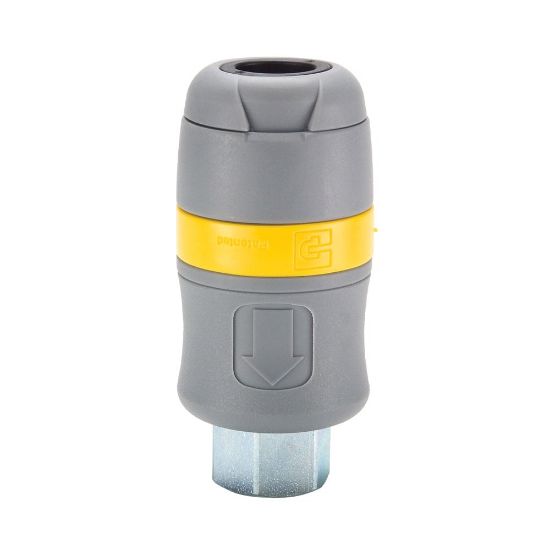

Industrial & European Interchange, Quick Connect Air Couplers - Tool-Mate Standard Series - PBH-371-6FP

Parker's non-marking, lightweight, pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air lines require fast and easy connection and disconnection.

Availability:	Backordered
Partner Available:	7 in stock

SKU: PBH-371-6FP

$64.99

Products specifications

Attribute name	Attribute value
Division	Quick Coupling Division	Lock Type	Polyacetate Locking Fingers
Body Material	Polyamide	Seal Material	Nitrile
Specifications Met	Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B)	Plating Type	Galvanized Steel Port Ends
Media	Compressed Air	Dimensional Weight	0.12582258992805753 lb
Valve Type	Tubular	Coupling Half	Coupler
Application	Air	Maximum Operating Pressure	300 psi
Maximum Operating Temperature	160 °F	Sleeve Type	Push-to-Connect
Minimum Operating Temperature	0 °F
Body Size	3/8"	Connection Thread Size	3/8"-18
Connection Type	Female, NPTF	Interface Option	Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B)
Thread Style	Female
