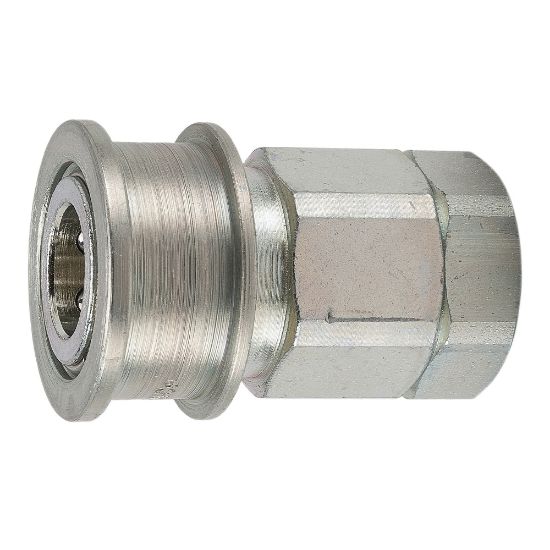

Vacuum and Medium Pressure Quick Couplings - EA Series - PEAC4-4F

Name: Vacuum and Medium Pressure Quick Couplings - EA Series - PEAC4-4F
SKU: PEAC4-4F
Availability: OutOfStock

Parker's multi-purpose quick couplers and nipples are ideal for use in vacuum and medium pressure applications where fluid or gas lines require fast and easy connection and disconnection.

Availability:

Backordered

SKU: PEAC4-4F

Qty:

Products specifications

Attribute name	Attribute value
Hex Size	0.88 inch	Maximum Operating Temperature	250 °F
Product Type	Manual Connect	Application	Vacuum and medium pressure hydraulics
Minimum Operating Temperature	-40 °F	Vacuum Pressure Rating	29.7 Inch-Hg
Seal Material	Nitrile	Valve Type	Unvalved
Plating Type	Zinc with clear trivalent chromate	Division	Quick Coupling Division
Maximum Operating Pressure	3000	Connection Thread Size (inch)	1/4 - 18
Coupling Half	Female Coupler	Body Size (inch)	1/4
Connection Type	Female NPTF	Body Material	Steel
