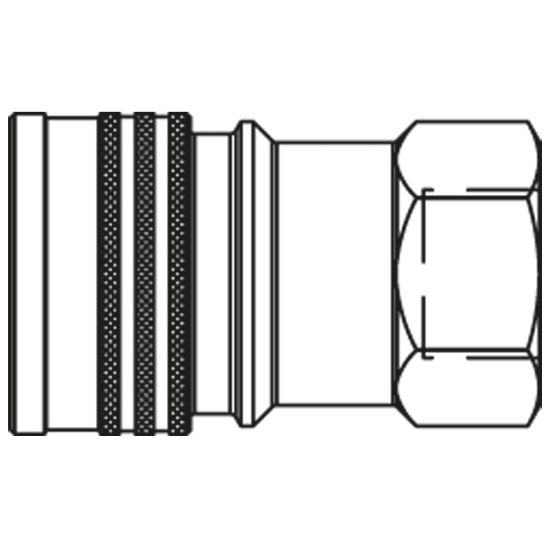

Hydraulic quick coupling - ISO B Profile - IB series - IB2511

Name: Hydraulic quick coupling - ISO B Profile - IB series - IB2511
SKU: IB2511
Availability: OutOfStock

Parker quick coupling system with ISO 7241-1 series B profile and body size 1/4" up to 1" for applications up to 400 bar.

Availability:

Backordered

SKU: IB2511

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Temperature	100 °C	Length	57 mm
Body Size	1/4 inch	Materials of Construction	Brass
Minimum Operating Temperature	-30 °C	Connection Type	Female Thread
Operating Pressure	400 bar	Outside Diameter	28 mm
Division	High Pressure Connectors Europe Division	Hex Size	24 mm
Connection Thread Size (inch)	1/4	Valving	with
Version	with Pressure Eliminator	Seal Material	NBR
Type	Coupling

Product resources

Literature and Reference Materials

Hydraulic Quick Couplings Catalogue--CAT/3800-HYD/UK
Catalog 3800 Quick Coupling Products

Compliance, Certifications & Safety

Safety instructions Quick Couplings
