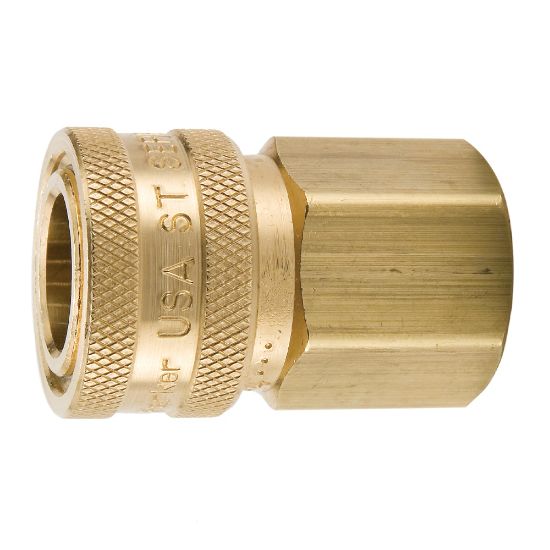

High Flow, Unvalved, Hydraulic Quick Couplings - ST Series - BST-2-BSPP

Name: High Flow, Unvalved, Hydraulic Quick Couplings - ST Series - BST-2-BSPP
SKU: BST-2-BSPP
Availability: OutOfStock

Parker's high flow quick couplers and nipples are unvalved for use where fluid lines require fast and easy connection and disconnection while providing maximum flow and low pressure drop.

Availability:

Backordered

SKU: BST-2-BSPP

Qty:

Products specifications

Attribute name	Attribute value
Valve Type	Unvalved	Hex Size	0.81 inch
Maximum Operating Temperature	250.0 °F	Division	Quick Coupling Division
Seal Material	Nitrile	Application	Hydraulic, high flow
Product Type	Push-to-Connect	Minimum Operating Temperature	-40.0 °F
Flow Rate	6.0 Gal/min
Maximum Operating Pressure	5200	Body Material	BRASS
Coupling Half	Female Coupler	Body Size (inch)	1/4
Connection Type	Female BSPP

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
