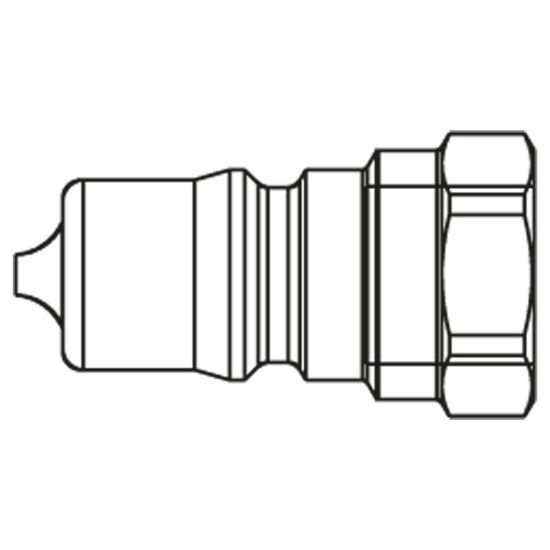

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Hydraulic quick coupling - ISO B Profile - IB series - IB10020

Name: Hydraulic quick coupling - ISO B Profile - IB series - IB10020
SKU: IB10020
Availability: OutOfStock

Parker quick coupling system with ISO 7241-1 series B profile and body size 1/4" up to 1" for applications up to 400 bar.

Availability:

Backordered

SKU: IB10020

Qty:

Products specifications

Attribute name	Attribute value
Division	High Pressure Connectors Europe Division	Hex Size	42 mm
Length	70 mm	Body Size	1 inch
Connection Type	Female Thread	Operating Pressure	300 bar
Outside Diameter	46 mm	Maximum Operating Temperature	100 °C
Materials of Construction	Steel Hardened	Minimum Operating Temperature	-30 °C
Valving	with	Version	Standard
Seal Material	NBR	Type	Plug
Connection Thread Size (inch)	1

Product resources

Literature and Reference Materials

Hydraulic Quick Couplings Catalogue--CAT/3800-HYD/UK
Catalog 3800 Quick Coupling Products

Compliance, Certifications & Safety

Safety instructions Quick Couplings
