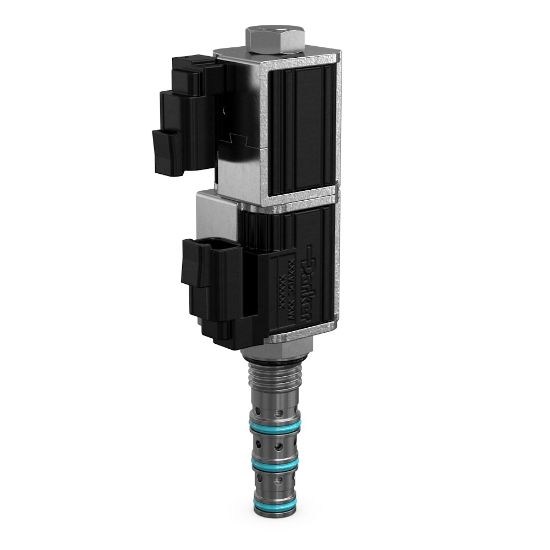

Directional Control Proportional Valves - DSP105C4MN

Name: Directional Control Proportional Valves - DSP105C4MN
SKU: DSP105C4MN
Availability: OutOfStock

Parker’s family of 3-position, 4-way proportional directional control valves come standard with closed or float center spools and are capable of flows up to 32 lpm (8.5 gpm) and pressures as high as 350 bar (5000 psi).

Availability:

Backordered

SKU: DSP105C4MN

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Maximum Operating Pressure	3000 psi
Body Material	n/a	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Minimum Operating Temperature	-34 °C
Maximum Inlet Pressure Rating	3000 psi	Coil Nut Tightening Torque	3 lb-ft
Coil Type	5/8" Super Coil High Watt (CAP)	Power Consumption	28 W
Installation Torque	25 lb-ft	Cavity Size	C10-4
Weight	0.57 lb	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+250 °F	Frequency	100-400 Hz
Actuation Type	Electrical, Manual	Operation Type	Solenoid operated, Manually operated
Valve Material	All parts steel. All operating parts hardened steel	Operating Temperature	-34 to +121 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Configuration	Floating Center
Response Time	50 ms	Maximum Tank Pressure	3000 psi
Function	Proportional Directional Control	Flow Rate	8.5 Gal/min
Leak Rate	10 @ 3000 PSI (210 BAR) cm3/min	Maximum Flow Rate	8.5 Gal/min
Override Functionality	Push and Pull	Current	2.33 @ 12 VDC, 1.17 @ 24 VDC A
Hysteresis	Less than 6%	Flow Rate Accuracy	+/- 15% @ 75% Nominal Current and Constant DeltaP Maintained with Pressure Compensator
Variation of Opening Point	25% - 30% of Input Signal
Seal Material	Nitrile	Maximum Inlet Pressure Rating	3000 PSI, 210 BAR
Configuration	Floating Center	Flow Rate	8.5 GAL/MIN, 32 L/MIN
Override Functionality	Push and Pull
