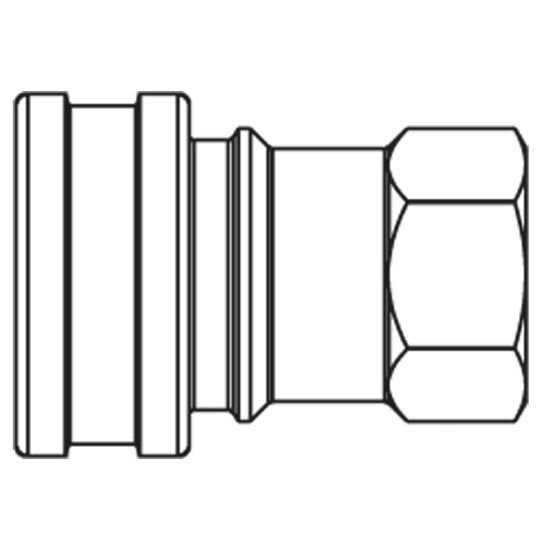

Hydraulic quick coupling - ISO B Profile - IB series - IB10010 HUV

Name: Hydraulic quick coupling - ISO B Profile - IB series - IB10010 HUV
SKU: IB10010 HUV
Availability: OutOfStock

Parker quick coupling system with ISO 7241-1 series B profile and body size 1/4" up to 1" for applications up to 400 bar.

Availability:

Backordered

SKU: IB10010 HUV

Qty:

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-30 °C	Materials of Construction	Steel Zinc Plated, Passivated
Body Size	1 inch	Connection Type	Female Thread
Length	94 mm	Division	High Pressure Connectors Europe Division
Operating Pressure	250 bar	Maximum Operating Temperature	100 °C
Outside Diameter	66 mm	Hex Size	50 mm
Valving	without	Seal Material	NBR
Connection Thread Size (inch)	1	Type	Coupling with Heavy Duty Sleeve
Version	Standard

Product resources

Literature and Reference Materials

Hydraulic Quick Couplings Catalogue--CAT/3800-HYD/UK
Catalog 3800 Quick Coupling Products

Compliance, Certifications & Safety

Safety instructions Quick Couplings
