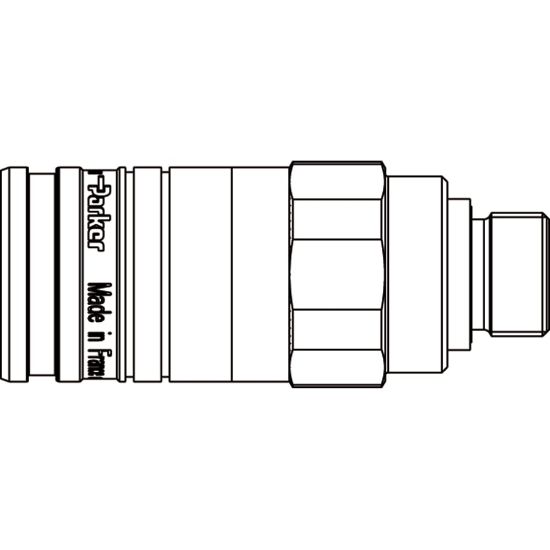

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Hydraulic Push-Pull Quick Coupling - ISO A Profile - RSD Series - RSD-501-22MME-F

Name: Hydraulic Push-Pull Quick Coupling - ISO A Profile - RSD Series - RSD-501-22MME-F
SKU: RSD-501-22MME-F
Availability: OutOfStock

Parker Push-Pull quick coupling with interchangeable ISO 7241-1 A profile and body size 1/2" for applications up to 250 bar.

Availability:

Backordered

SKU: RSD-501-22MME-F

Qty:

Products specifications

Attribute name	Attribute value
Materials of Construction	Chrome VI Free Plated Steel	Product Type	Coupling
Minimum Operating Temperature	-30 °C	Outside Diameter	38 mm
Hex Size	38 mm	Length	97.5 mm
Division	High Pressure Connectors Europe Division	Body Size	1/2 inch
Maximum Operating Temperature	110 °C	Weight	480 g
Seal Material	Composite	Maximum Operating Pressure	250 bar
Diameter	n/a	Connection Type	Male Thread ISO 9974-2 with ED-Seal
Body Size	n/a	Length	n/a
Connection Thread Size	22x1.5 mm	Fitting Type	Coupling
