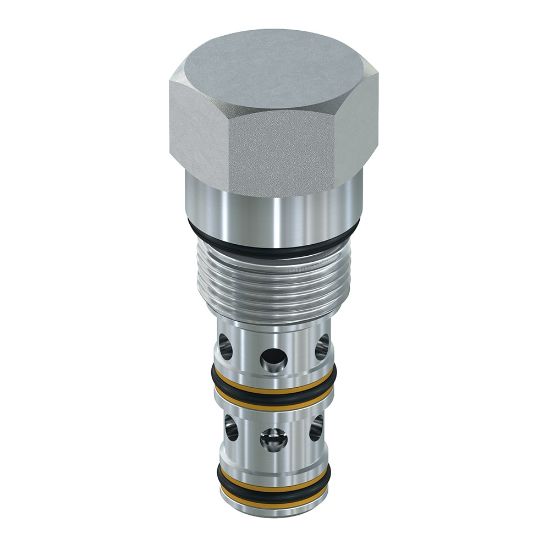

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Cartridge Spool Type Shuttle Valve - K04D3V

Name: Cartridge Spool Type Shuttle Valve - K04D3V
SKU: K04D3V
Availability: OutOfStock

REGIONAL - Parker's 2-position, 3-way spool type shuttle valves will fit industry common cavities while providing superior performance; capable of flows up to 90 lpm (24 gpm) and 420 bar (6000 psi).

Availability:

Backordered

SKU: K04D3V

Qty:

Products specifications

Attribute name	Attribute value
Maximum Inlet Pressure Rating	420 bar	Maximum Flow Rate	24 Gal/min
Actuation Type	Pressure Sensing	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Seal Material	Fluorocarbon	Maximum Operating Temperature	+204 °C
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Body Material	n/a
Standard Flow Rate Setting	50 L/min	Weight	0.31 lb
Flow Rate	24 Gal/min	Operation Type	Automatic
Operating Temperature	-26 to +204 °C	Division	Mobile Hydraulic Systems Division Europe
Cavity Size	C10-3	Valve Material	All parts steel. All operating parts hardened steel
Configuration	3-way Spool Type	Function	Shuttle
Minimum Operating Temperature	-15 °F	Leak Rate	55 @ 1450 PSI (100 BAR) cm3/min
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Installation Torque	37 lb-ft
Maximum Operating Pressure	6000 psi
Flow Rate	24 GAL/MIN, 90 L/MIN	Seal Material	Fluorocarbon
