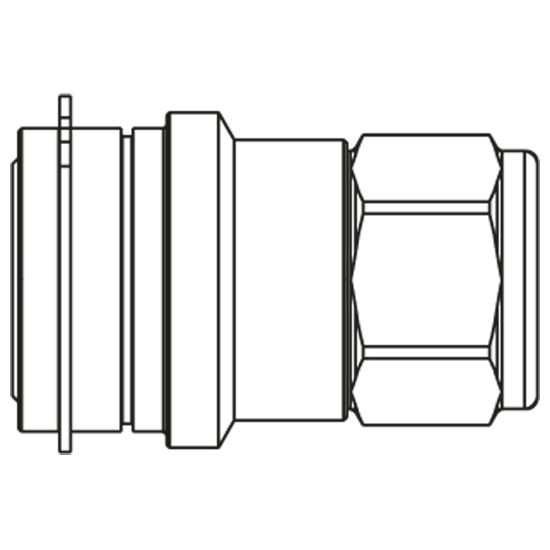

Hydraulic Flat-Face Quick Coupling - Parker Profile - FF Series - FF7510 CE

Name: Hydraulic Flat-Face Quick Coupling - Parker Profile - FF Series - FF7510 CE
SKU: FF7510 CE
Availability: OutOfStock

Parker Flat-Face quick coupling system with body sizes 1/4" up to 1" and Parker Tema profile for applications up to 800 bar.

Availability:

Backordered

SKU: FF7510 CE

Qty:

Products specifications

Attribute name	Attribute value
Division	High Pressure Connectors Europe Division	Hex Size	50 mm
Outside Diameter	66 mm	Maximum Operating Pressure	400 bar
Connection Type	Female Thread	Minimum Operating Temperature	-30 °C
Maximum Operating Temperature	100 °C	Length	98 mm
Materials of Construction	Brass / Steel
Type	Coupling	Connection Thread Size (inch)	3/4
Seal Material	NBR	Version	for Muliplate
Body Size (inch)	3/4

Product resources

Compliance, Certifications & Safety

Safety instructions Quick Couplings

Literature and Reference Materials

Hydraulic Quick Couplings Catalogue--CAT/3800-HYD/UK

Literature and Reference Materials,Selector Guides

파카_Non-Spill Quick Coupling_FEM_FF_QHPA시리즈
