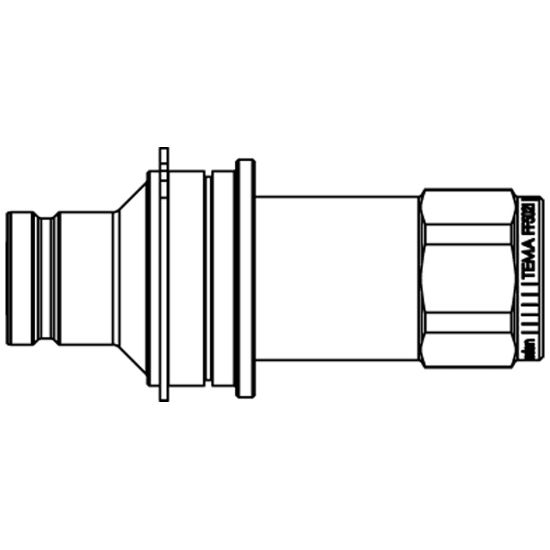

Hydraulic Flat-Face Quick Coupling - Parker Profile - FF Series - FF5021 CE

Name: Hydraulic Flat-Face Quick Coupling - Parker Profile - FF Series - FF5021 CE
SKU: FF5021 CE
Availability: OutOfStock

Parker Flat-Face quick coupling system with body sizes 1/4" up to 1" and Parker Tema profile for applications up to 800 bar.

Availability:

Backordered

SKU: FF5021 CE

Qty:

Products specifications

Attribute name	Attribute value
Division	High Pressure Connectors Europe Division	Connection Type	Female Thread
Hex Size	36 mm	Minimum Operating Temperature	-30 °C
Outside Diameter	52 mm	Length	117 mm
Maximum Operating Temperature	100 °C	Materials of Construction	Brass / Steel
Maximum Operating Pressure	450 bar
Type	Plug	Seal Material	NBR/PUR
Version	Pressure Eliminator for Multiplate	Connection Thread Size (inch)	1/2
Body Size (inch)	1/2
