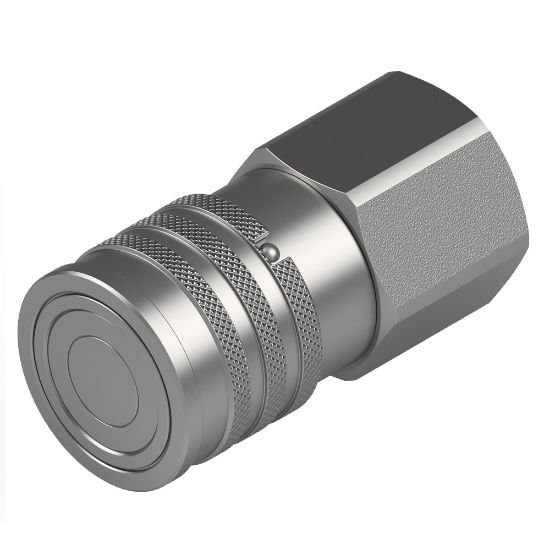

Hydraulic Flat-Face Quick Coupling - ISO 16028 - FEM/IF Series - IF5010 RVUNF

Name: Hydraulic Flat-Face Quick Coupling - ISO 16028 - FEM/IF Series - IF5010 RVUNF
SKU: IF5010 RVUNF
Availability: OutOfStock

Parker Flat-Face quick coupling system with body size 1/8" up to 1" and ISO 16028 for applications up to 450 bar.

Availability:

Backordered

SKU: IF5010 RVUNF

Qty:

Products specifications

Attribute name	Attribute value
Application	n/a	Maximum Operating Temperature	200 °C
Hex Size	36 mm	Specifications Met	ISO 16028
Seal Material	FKM	Plating Type	n/a
Division	High Pressure Connectors Europe Division	Minimum Operating Temperature	-25 °C
Flow Rate	50 L/min	Product Type	Quick-coupling
Body Material	Stainless Steel
Version	Stainless Steel	Type	Coupling
Body Size (inch)	1/2	Connection Thread Size (inch)	UNF 7/8-14

Product resources

Compliance, Certifications & Safety

Safety instructions Quick Couplings

Literature and Reference Materials

FEM Series--LEAF/3800-FEM-Series/UK
