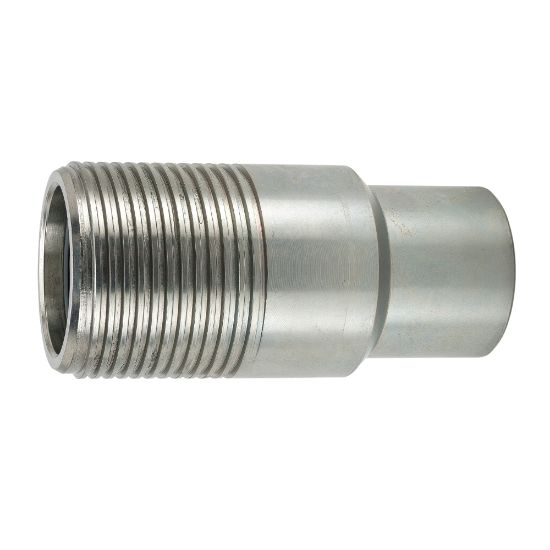

High Pressure, Thread to Connect Couplings, API 16D - 75 Series - 75N32-32RPW

Name: High Pressure, Thread to Connect Couplings, API 16D - 75 Series - 75N32-32RPW
SKU: 75N32-32RPW
Availability: OutOfStock

Parker's heavy duty thread to connect quick couplers and nipples are used in rugged hydraulic applications where fluid lines require connection and disconnection while either the coupler or nipple are under residual pressure.

Availability:

Backordered

SKU: 75N32-32RPW

Qty:

Products specifications

Attribute name	Attribute value
Seal Material	Nitrile	Product Type	Thread-to-Connect
Body Material	Steel	Maximum Operating Temperature	250 °F
Valve Type	Poppet	Application	Hydraulic high pressure, connect under pressure
Minimum Operating Temperature	-40 °F	Plating Type	Zinc with clear trivalent chromate
Division	Quick Coupling Division	Hex Size	3.5 inch
Specifications Met	API 16D	Connection Thread Size (inch)	2 - 11 1/2
Coupling Half	Male Nipple	Connection Type	Female BSPP
Maximum Operating Pressure	345	Sleeve Type	na
Body Size (inch)	2

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories
