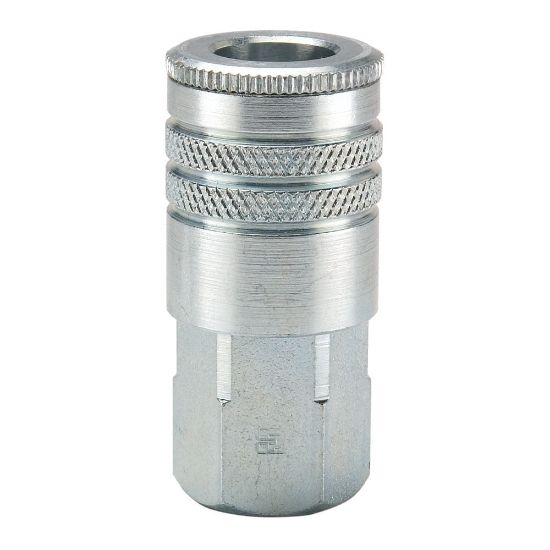

Industrial Interchange, Manual Connect, Quick Connect Air Couplers - 20 Series - 25C

Parker's general purpose, Industrial Interchange pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	11 in stock
Partner Available:	244 in stock

SKU: 25C

$29.81

Qty:

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-40 °F	Seal Material	Nitrile
Division	Quick Coupling Division	Coupling Half	Coupler
Maximum Operating Pressure	300 psi	Maximum Operating Temperature	250 °F
Plating Type	Zinc with clear trivalent chromate	Application	Air
Valve Type	Tubular	Specifications Met	Connects with A-A-59439 (MIL-C-4109F, ISO 6150-B
Lock Type	Locking balls	Sleeve Type	Manual
Media	Low pressure fluids and compressed air	Dimensional Weight	0.07997601918465227 lb
Body Material	Steel	Body Size (inch)	3/8
Connection Thread Size (inch)	1/4 - 18	Thread Style	Female
Connection Type	NPTF	Connection Hose I.D. (inch)	na
