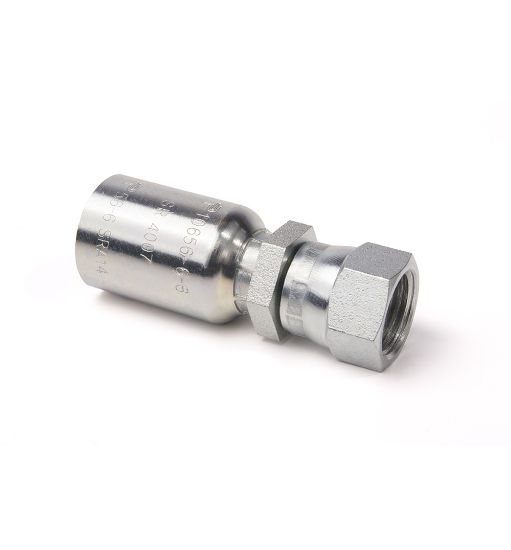

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Global Fittings - 56 Series - Inch - 10656-4-3

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Availability:	571 in stock
Partner Available:	1057 in stock

SKU: 10656-4-3

$9.58

Products specifications

Attribute name	Attribute value
Brand	Parker	Shape	Straight
Coating	Chromium 6 Free-plated	Division	Parflex Division
Industry	Industrial Manufacturing Equipment	Hex Size 1	9/16 inch (see drawing legend J)
Hex Size 2	n/a	Technology	Fluid & Gas Handling
Application	Industrial Hydraulics	Body Material	Steel
Configuration	Hose to Port	Fitting Length	1.78 inch (see drawing legend A)
For Fluid Type	Air (Pneumatic Media)	Connection 1 Size	4.8 mm Hose I.D.
Connection 1 Type	Hose	Connection 2 Size	7/16"-20 inch Thread
Connection 2 Type	JIC 37°	Connection Length	1-1/16 inch Cut-off allowance
Division	Parflex Division	Maximum Operating Pressure	34.5 MPa (Dependent on hose)
Dimensional Weight	0.0214 lb	Tube Outside Diameter	n/a
Hex Size	9/16 inch (see drawing legend H)	Shipping Weight	0.031 kg
Product Style	Female JIC 37° - Swivel - Straight	Length (inch)	1.78"
Hose I.D. (inch)	0.188"	Connection 2 Size	7/16"-20
Materials of Construction	Steel
