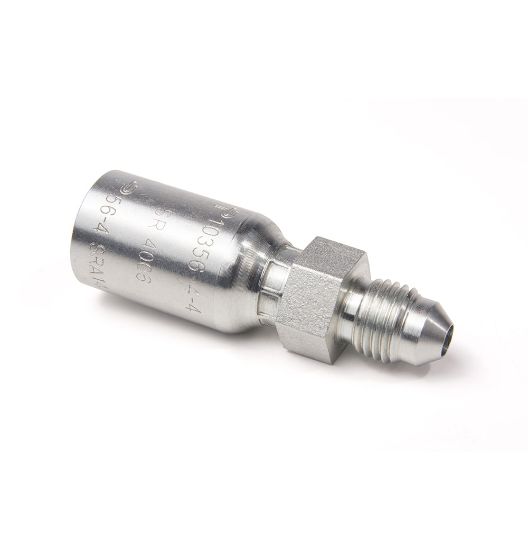

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Global Fittings - 56 Series - Inch - 10356-6-6

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

Availability:	55 in stock
Partner Available:	949 in stock

SKU: 10356-6-6

$12.55

Products specifications

Attribute name	Attribute value
Brand	Parker	Shape	Straight
Division	Parflex Division	Hex Size	5/8 inch (see drawing legend H)
Industry	Transportation	Technology	Fluid & Gas Handling
Application	Industrial Hydraulics	Body Material	Steel
Fitting Length	2.15 inch (see drawing legend A)	Connection 1 Size	9.5 mm Hose I.D.
Connection 1 Type	Hose	Connection 2 Size	9/16"-18 inch Thread
Connection 2 Type	Rigid	Connection Length	1-3/16 inch Cut-off allowance
Division	Parflex Division	Maximum Operating Pressure	5000 psi (Dependent on hose)
Coating	Chromium 6 Free-plated	Configuration	Hose to Port
For Fluid Type	Air (Pneumatic Media)	Hex Size 1	n/a
Hex Size 2	n/a	Shipping Weight	0.05 kg
Dimensional Weight	0.0185 lb	Tube Outside Diameter	n/a
Connection 2 Size	9/16"-18	Product Style	Male JIC 37° - Rigid - Straight
Length (inch)	2.15"	Hose I.D. (inch)	0.375"
Materials of Construction	Steel
