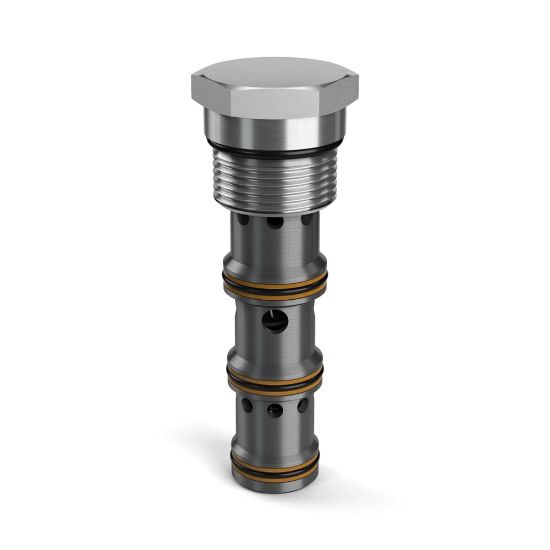

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Flow Divider/Combiner Valves - L06A3-90-90V

Name: Flow Divider/Combiner Valves - L06A3-90-90V
SKU: L06A3-90-90V
Availability: OutOfStock

Parker offers four different flow divider/combiner valves to cover a wide range of flows up to 320 lpm (85 gpm) and pressures as high as 420 bar (6,000 psi). Standard and custom ratios are available, along with optimized flow range options.

Availability:

Backordered

SKU: L06A3-90-90V

Qty:

Products specifications

Attribute name	Attribute value
Connection Size	n/a	Configuration	n/a
Operating Temperature	-26 to +204 °C	Connection Type	n/a
Minimum Operating Temperature	-15 °F	Weight	0.86 lb
Division	Mobile Hydraulic Systems Division Europe	Maximum Flow Rate	47 Gal/min
Cavity Size	C16-4	Valve Material	All parts steel. All operating parts hardened steel
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Function	Flow Divider/Combiner
Maximum Inlet Pressure Rating	6000 psi	Flow Rate Accuracy	10%
Maximum Operating Pressure	420 bar	Actuation Type	Interlocking Spools
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	Seal Material	Fluorocarbon
Flow Rate	180 L/min	Ratio	50/50
Body Material	n/a	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Maximum Operating Temperature	+204 °C	Standard Flow Rate Setting	65-180 L/min
Installation Torque	74 lb-ft	Operation Type	Automatic
Division	Hydraulic Cartridge Systems Division
Seal Material	Fluorocarbon	Standard Flow Rate Setting	17.2-47.8 GAL/MIN, 65-180 L/MIN
Flow Rate	47 GAL/MIN, 180 L/MIN	Ratio	50/50
