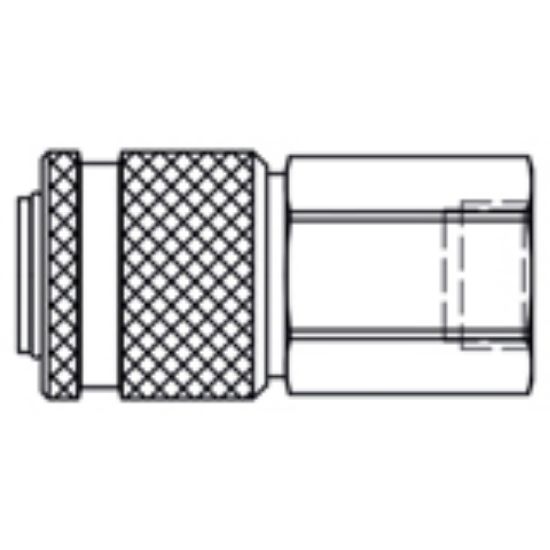

Quick Coupling with ISO 6150 B Profile, Series 37 - 37KAIW26MPX

Name: Quick Coupling with ISO 6150 B Profile, Series 37 - 37KAIW26MPX
SKU: 37KAIW26MPX
Availability: OutOfStock

Quick coupling system with nominal diameter 11 for pneumatic and fluid handling applications up to 35 bar. Coupling system with ISO 6150 B profile and according to US MIL-SPEC 4109. Available made of brass.

Availability:

Backordered

SKU: 37KAIW26MPX

Qty:

Products specifications

Attribute name	Attribute value
Maximum Operating Pressure	35 bar	Flow Rate	2600 L/min
Length	74 mm	Valve Included	Yes
Division	Low Pressure Connectors Europe Division	Maximum Operating Temperature	100 °C
Hex Size	32 mm	Outside Diameter	35 mm
Seal Material	NBR	Version	Single Shut-Off
Minimum Operating Temperature	-20 °C
Material	Brass	Connection Thread Size (inch)	3/4
Connection Type	Female Thread	Hose I.D.	na
Type	Coupling
