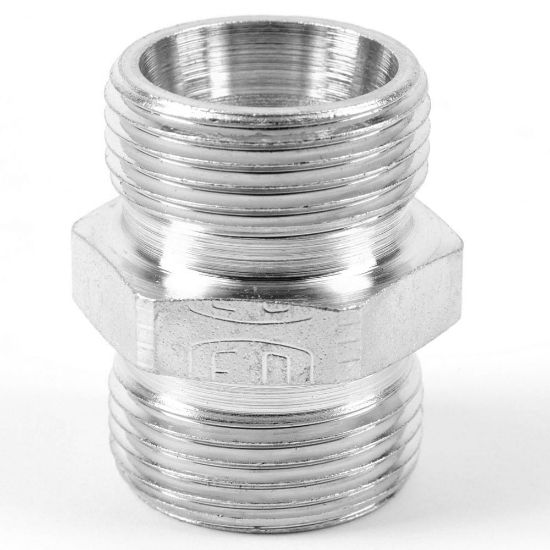

Ermeto DIN tube to tube high pressure hydraulic tube fittings - G15LCF

The main function of Ermeto DIN tube to tube high pressure hydraulic tube fittings is to connect different numbers of tubes. This broad range of fittings is available in steel and in stainless steel.

Availability:	9 in stock
Partner Available:	139 in stock

SKU: G15LCF

$24.97

Products specifications

Attribute name	Attribute value
Product Type	Hydraulic DIN Fittings	Division	High Pressure Connectors Europe Division
Configuration	Tube to Tube	Accessories Included	Pre-assembled with Nut and EO-PSR Cutting Ring
Shape	Straight	Industry	Automotive
Maximum Operating Pressure	400 bar	Brand	Ermeto
Minimum Fluid Temperature	-40 °F	Maximum Ambient Temperature	300 °C
For Fluid Type	Gases	Maximum Fluid Temperature	572 °F
Seal Type	Sealing Edge	Application	Hydraulics
Minimum Ambient Temperature	-40 °F	Product Series	EO Light
Connection 2 Size	15 mm Tube O.D.	Connection 1 Size	15 mm Tube O.D.
Specifications Met	DIN	Seal Material	n/a
Body Material	Steel	Connection 1 Type	Male
Technology	Fluid & Gas Handling	Division	High Pressure Connectors Europe Division
Connection 2 Type	Male
Connection 1 Size	15 mm (O.D.)	Connection 2 Size	15 mm (O.D.)
Shape	Straight	Product Style	Union
Accessories Included	Pre-assembled with Nut and EO-PSR Cutting Ring	Body Material	Steel
Connection 2 Type	Male 24° Cone	Connection 1 Type	Male 24° Cone
