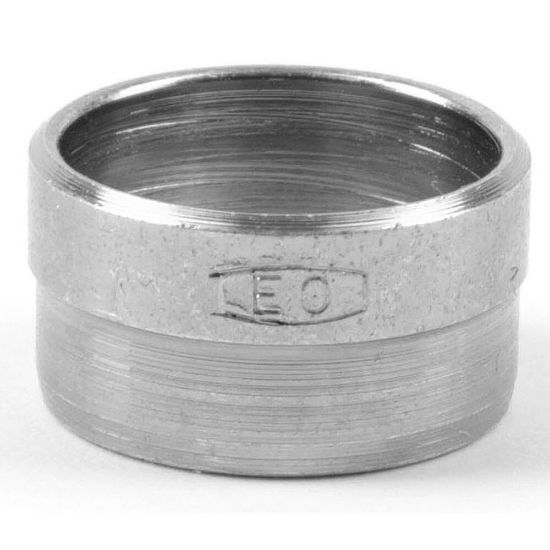

Ermeto DIN fitting components for high pressure hydraulic tube fittings - D04LLMSX

Ermeto DIN fitting components for high pressure hydraulic tube fittings are indispensable items in order to build up a complete fitting series (EO-PSR, EO-2, EO2-FORM).

Availability:	Backordered
Partner Available:	Backordered

SKU: D04LLMSX

$4.01

Products specifications

Attribute name	Attribute value
Body Material	BRASS	Configuration	n/a
Seal Material	n/a	Technology	Fluid & Gas Handling
Industry	Construction	Shape	n/a
Division	High Pressure Connectors Europe Division	Application	Hydraulics
Maximum Operating Pressure	63 bar	Division	High Pressure Connectors Europe Division
Connection 1 Size	4 mm Tube O.D.	For Fluid Type	Fuels
Minimum Fluid Temperature	-40 °C	Connection 1 Type	Tube
Product Type	Hydraulic DIN Fittings	Brand	Ermeto
Specifications Met	ISO 8434	Seal Type	Sealing Edge
Maximum Fluid Temperature	572 °F	Maximum Ambient Temperature	572 °F
Minimum Ambient Temperature	-40 °F	Product Style	Cutting Ring
Product Series	EO Very Light
Body Material	BRASS	Product Style	Cutting Ring
Connection 1 Size	4 mm (O.D.)
